Scope of application

Sewer and manhole dredging kits are tools for professionals in the work of dredging debris in public sewerage. It is an appropriate application of our equipment to the machine you are using. It allows for greater productivity. It can work quickly and conveniently, saving labor significantly and making it low-cost.

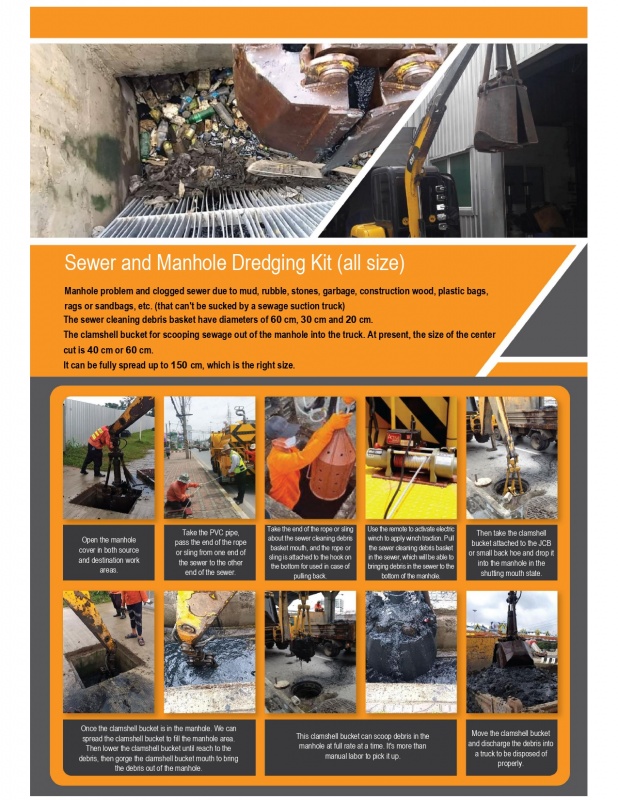

Sewer and manhole dredging kits consists of two main parts;

1. The sewer cleaning debris basket is an equipment for used to dredging debris inside the sewer to gather in the manhole. It will work with winch (electric winch) with a high traction capacity of 5 tons, which can be installed with the existing vehicle's electrical system to tow the sewer cleaning debris basket instead of manual labor. It can save dozens of workers and help make work more convenient and faster.
2. The clamshell bucket is an equipment for scooping debris out of the manhole into the trunk, consisting of a clamshell bucket set for installation with the excavation system of JCB or small back hoe vehicles. It can scoop up sewage both small and large things such as mud, rubble, solid waste, wood, plastic bags, rags, Sandbags, scrap metal, fat lumps, etc. These sewage will not be able to use the commonly used sewage suction truck.


Technical Parameters

The clamshell bucket

 Model

60 CM

40 CM

 Approximately width of the bucket while shutting

620 mm

400 mm

 Approximate width of bucket while opening

1,530 mm

1,000 mm

 Approximate bucket height

630 mm

500 mm

 Approximate gross weight

180 kg

120 kg

 Scope of application

 Fitted to the excavator system of a small JCB or back hoe vehicle. The clamshell bucket model can be selected according to your needs.

The sewer cleaning debris basket

 Model

60 CM

40 CM

 Approximate diameter

600 mm

400 mm

 Approximate height

600 mm

400 mm

 Approximate gross weight

50 kg

 30 kg

 Scope of application

 - Traction with winch (electric winch) and 1-2 workers.

  - In case of choosing to use the 60 CM model, it is necessary to use the 40 CM model to penetrate the lead first so as not to cause excessive load.

 - There are also 30 CM models available.

Winch (electric winch)

 Size

     5 tons

 Electrically driven

     DC 12V, DC 24V (selectable according to vehicle type)

 Control system

     Remote control

 Scope of application

     Installed to customer-specified vehicle

Accessories

 Sling

     Approximate diameter 8-10 mm, length approx. 5 m, 5 pieces (can be joined together by loop)
