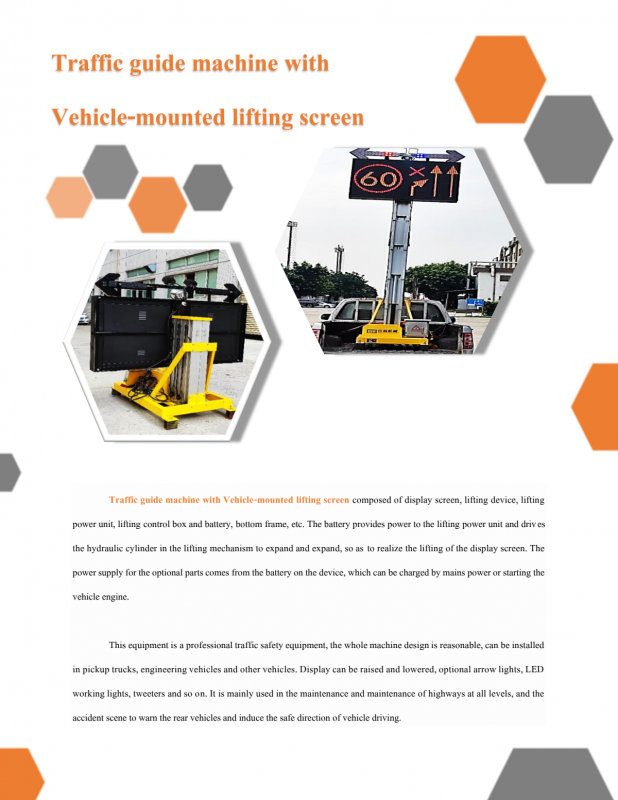

Traffic guide machine with Vehicle-mounted lifting screen is a professional traffic safety equipment, the whole machine design is reasonable, can be installed in pickup trucks, engineering vehicles and other vehicles. Display can be raised and lowered, optional arrow lights, LED working lights, tweeters and so on. It is mainly used in the maintenance and maintenance of highways at all levels, and the accident scene to warn the rear vehicles and induce the safe direction of vehicle driving. The equipment is composed of display screen, lifting device, lifting power unit, lifting control box and battery, bottom frame, etc.
Specification
|
Parameter |
|
|
Overall Dimensions |
1660×1390×1660mm (extreme lower position) 1660×1390×5160mm (extreme higher position) |
|
Weight |
200kg |
|
P10 outdoor full-color display screen |
The resolution of the screen is 6.4516 pixels per inch, the resolution of the unit board is 32 points ×16 points, the display density is 10000 points /㎡, the display brightness is > 5800cd/㎡, the frame change speed is > 120 frames/second, and the blind spot rate is < 0.0002, WiFi module available, mobile editable, remote control operation，Can display letters and pictures and videos |
|
Display screen overall dimensions |
1660×860mm |
|
Display screen display size |
1600×800mm |
|
Lift platform |
Maximum lifting height 3.5m, motor power 0.8kW |
|
Accessories |
|
|
Arrow lights |
Red and blue flashing lights in the tail, DC12V |
|
LED working lights |
Protection level IP67, lamp bead color temperature 6000K, illumination type: Flood/Spot |
|
Tweeter |
DC12V,300W，Circulable broadcast |
