High Water Pressure Surface Cleaner

Product Video

Scope of Application

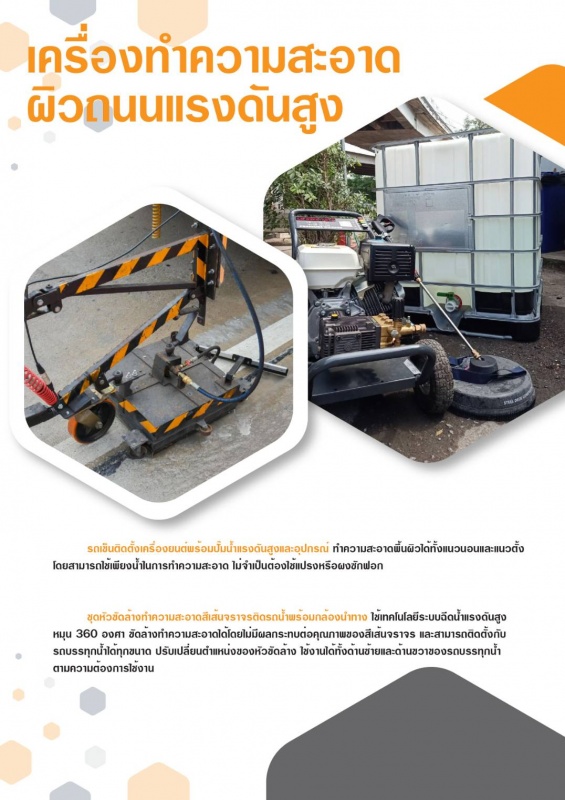

1. A set of engine mounted trolley with high pressure water pump and accessories. It used to clean both horizontal and vertical surfaces. Using water only, no brushes or detergents required.
Horizontal way: used for general floor cleaning, traffic marking colors, zebra crossings, drainage curb and gutters, gating, etc.
Vertical way: used to clean barriers, piers, bridge railings, walls, traffic signs, etc.
2. A set of scrubbing plates to clean the color of the lines left and right sides, with a navigation camera installed on any water trucks. It is invented, designed and patented on behalf of SRIPHAN VANICH Co., Ltd. using high pressure water blasting technology, can be cleaned without affecting the color of the lines and is designed to be fitted to water trucks of any size. It can also adjust the position of the scrubbing plates to be used on both the left and right sides of the water truck according to the application requirements.

Machine Data
High pressure water pump
Average water pressure 3600 psi / 252 bar
Average water flow rate 13.2 L/min
High pressure water connector Quick coupling
Low pressure water connector barbed fitting
Pump protection system Release valve
Engine 16 hp, 4-stroke gasoline engine, air-cooled, electric start and pull recoil start
High pressure surface cleaner
High pressure surface cleaner 3600 psi
Nozzle 2 stainless steel nozzles
Size Ø 15 inch
Cleaning manner water blasting, continuous rotation 360 degrees
A set of scrubbing plates to clean the color of the lines left and right sides, with a navigation camera installed on any water trucks
Main structure structural steel
Performance 5 km/h
Cleaning manner water blasting, continuous rotation 360 degrees
Maximum operating pressure 3600 psi
High pressure surface cleaner Ø 15 inch
Nozzle 2 stainless steel nozzles
Scrubbing plates wheel 4 wheels
Scrubbing plates lead wheel 1 wheel
Lead wheel mounted camera 2 cameras
Display device and switch 1 set
Lead wheel lighting 1 set
