Scope of Application

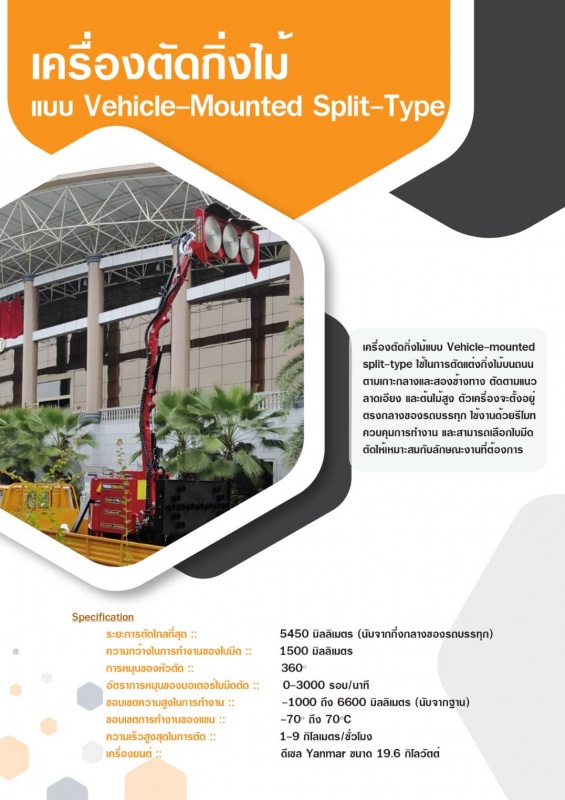

Multifunctional green trimmer (vehicle-mounted split-type) is designed to be used to cut green space along expressways, highways and roads in the city, can be used to trim trees along the island in the middle of the road and on both sides of the road, mow the lawn along the slopes and cut down tall trees. The machine is located in the middle of the truck and operated by a remote control, and the machine can choose to use the cutting blade to suit the work.

Machine Data
Dimension (length×width×height)	2700×1700×2200 mm
Maximum pruning distance	5450mm (Distance from vehicle center)
Working width of tool bit	1500 mm
Rotation angle of cutter head	360°
Rotational speed of tool bit	0-3000 rpm
Working height range	-1000 - 6600 mm (Distance from bottom)
Folding range of working arm	-70° - 70°
Maximum pruning speed	1-9 km/h
Engine	Imported Yanmar diesel engine, 19.6kW
Slope grass trimming tooling (straight blade)
High branch pruning circular saw tooling Maximum cutting: Ø100mm (circular saw blade)
