Scope of Application
Trailer asphalt recycling machine is a professional integrated thermal regenerative maintenance equipment for asphalt roads. It can be used to mix and heat both old asphalt mixed materials and new asphalt mixed materials. The machine consists of asphalt heating system, emulsified asphalt spray system and power system. Therefore, it is an ideal machine for provides hot asphalt mixed materials for the damaged road conveniently and rapidly.

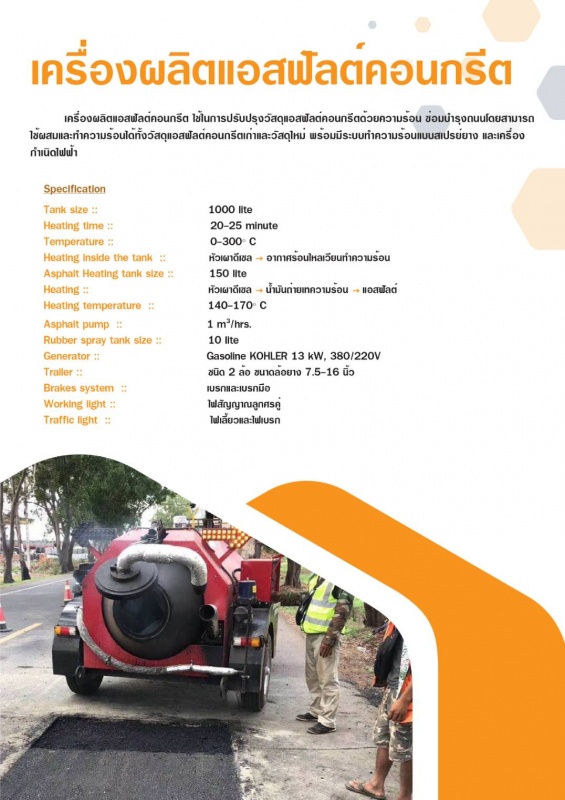

| Machine Data | |
| Dimension (length×width×height) | 4812×2032×1931 mm |
| Weight | 3000 kg |
| Drum volume | 1000 L |
| Continuous heating time | 20-25 mins |
| Temperature control range | 0-300 ºC |
| Heating manner of drum | Diesel burner → hot air circulation heating |
| Volume of asphalt heating tank | 150 L |
| Heating manner | Diesel burner → heat transfer oil → asphalt |
| Heating temperature | 140-170°C |
| Asphalt pump flow | 1m3/h |
| Volume of emulsified asphalt tank | 10 L |
| Generating unit | KOHLER gasoline generator, 13 kW, 380/220V, electronic start. |
| Walking device | Specialized trailer chassis, two wheels trailer, tires size: 7.5-16. |
| Braking mode | parking brake and driving brake |
| Alarming unit | Alarming indicator lamp (dual arrows) |
| Traffic light | Turning light and brake light. |
